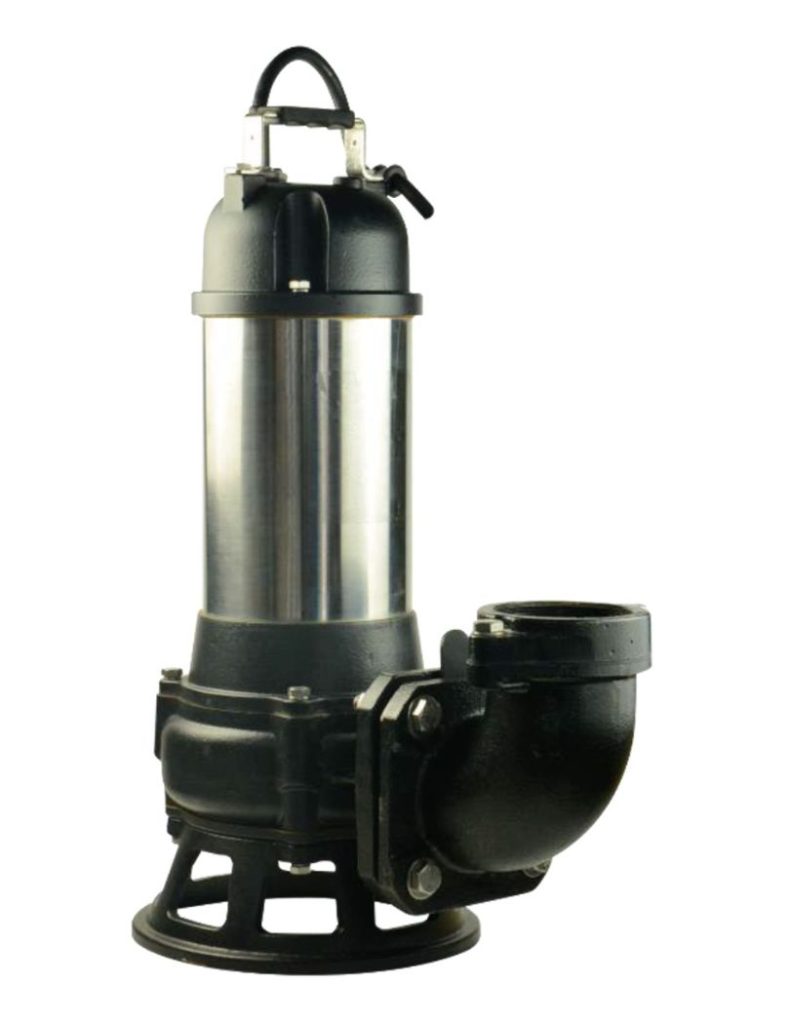

TS, TDS & TKS Series
The TS, TDS & TKS Series pumps are specially designed for efficient handling of industrial sewage discharge. With a non-clogging vortex impeller and a suspended impeller design, these pumps ensure uninterrupted performance while preventing blockages. The high-efficiency flow channel enables the smooth passage of solids, making these pumps suitable for demanding sewage applications.
Built for durability and reliability, the TS, TDS & TKS Series pumps provide a robust solution for submersible installations.
.
Features
- Non-clogging vortex impeller design.
- Suspended impeller and high efficacy flow channel design, no blocking. The pass solid is TS (35mm), TDS (35mm), TKS (12mm).
Application
- Industrial sewage discharge
Technical Data
Motor
- 2 Pole, 50Hz
- Speed 2900 rpm
- Insulation Class : F
- 3 Phase
- Protection Type IP68
Pump
- Impeller : Semi Open Impeller Material
- Impeller : QT450
- Casing : FC200
- Suction Cover : FC200
- Shaft : SUS410 + S25C
- pH 6 up to 8
Max. liquid temp : 40°C (104°F) - Max. depth 7m
Performance Curve
