NDV Series

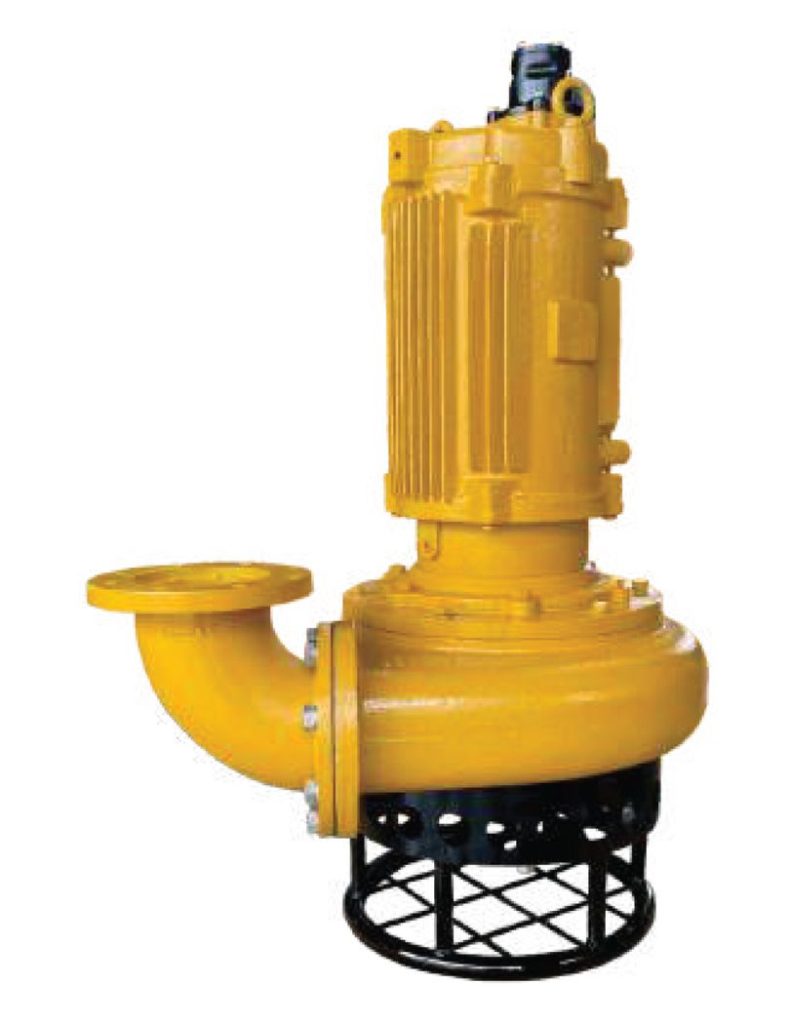

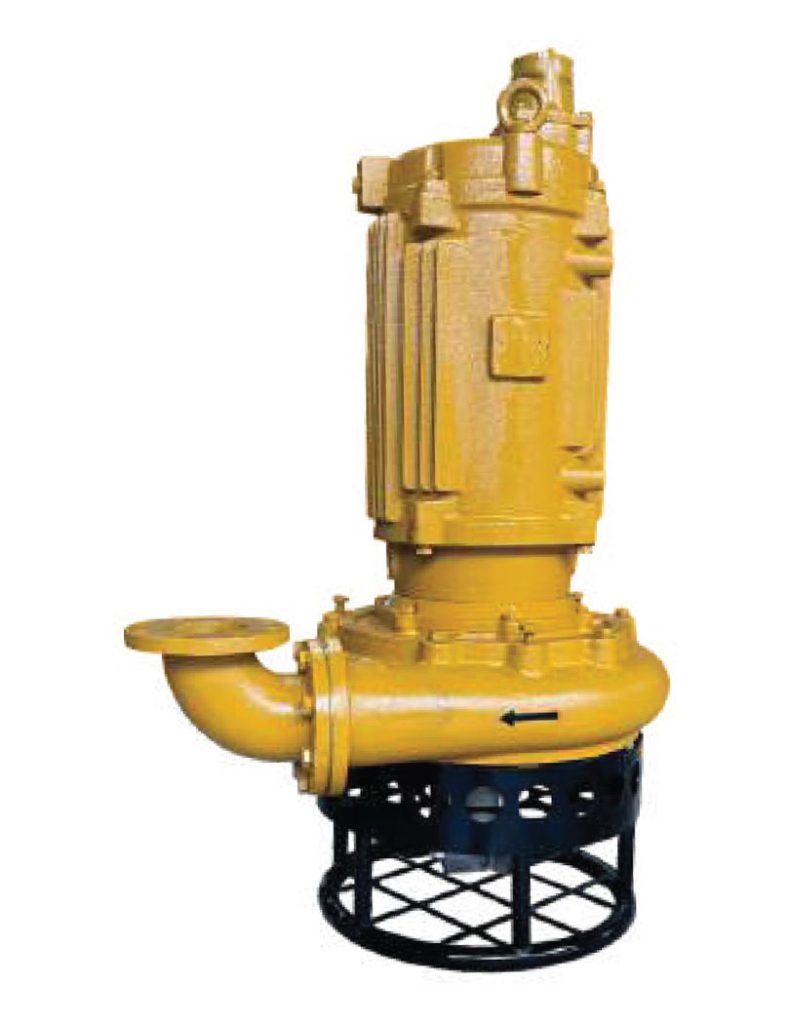

NDV-6P pumps are heavy-duty submersible sand pumps designed for industrial applications. These pumps feature a durable dry motor design enclosed in a cast iron housing, providing reliable performance in challenging environments. Equipped with a high chromium agitator, they create strong water flow to lift and transport sand and sediment effectively. The pump’s robust construction and double mechanical seals ensure long-lasting operation, while its design allows for efficient submersible installation and easy maintenance.
Features
- Dry Motor Design, Full cast iron motor housing, equipped with • double mechanical seal SiC Silicon Carbon Steel (Slicon Carbide).
- A High Chromium (HCR) Agitator is installed at the bottom of pump which can produce strong stirring water flow that can lift up mud and sand.
Application
- Efficient handling of industrial sewage and wastewater.
- Suitable for drainage in industrial facilities.
- Removal of sludge and sediment in sewage systems.
- Ideal for processing and transporting wastewater in commercial environments.
- Effective in environments with high solid content, preventing clogs and maintaining flow.
Technical Data
- Flow max: 8.0 m³/min
- Head max: 60 m
- Liquid temperature: 0°C to 40°C
- Ambient temperature: Max 40°C
- Solid pass: 35 mm
- Max depth: Not specified (refer to product specifications if needed)
- Material: FC200, FCD500, SUS420, High Chromium Agitator
Performance Curve
