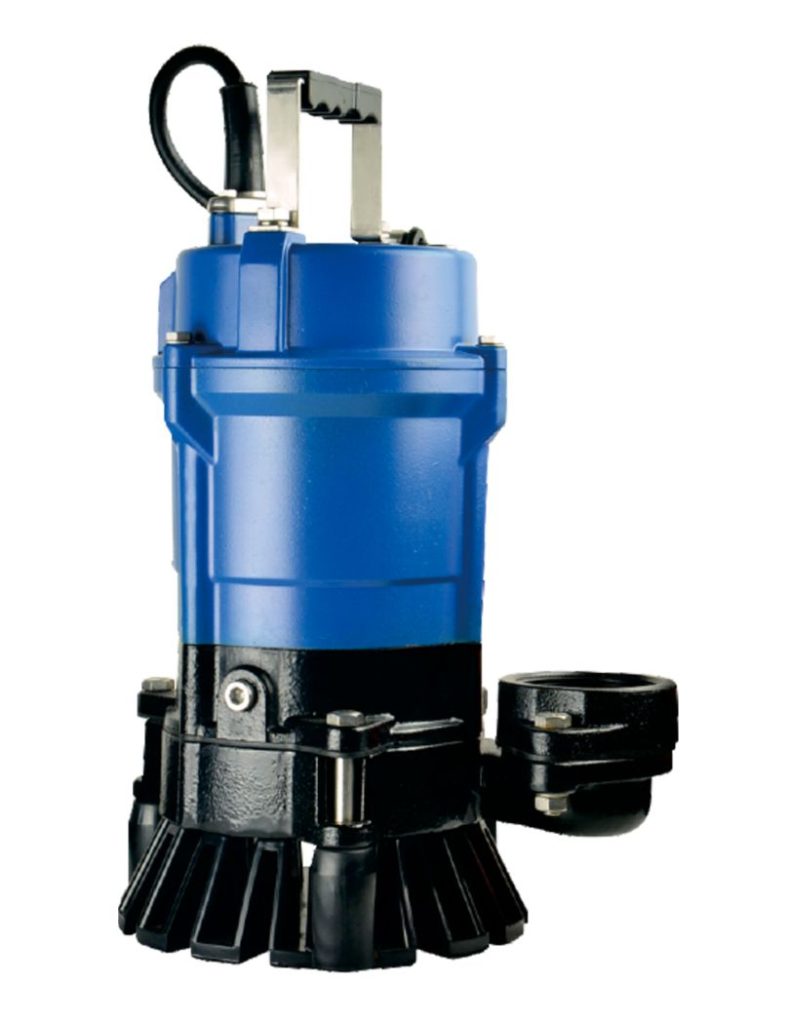

KA Series
The KA Series is a durable and reliable dewatering pump. It is the best choice for water intake or draining also suitable for dewatering in construction sites due to its portability. It features a built motor protection and agitator for clog prevention. The pump is designed for easy maintenance and use.
Features
- Anti-wicking cable entry
- Dual inside mechanical seal with silicon carbide side
- Oil lifter
- Built motor protection
- Agitator for clog prevention
- Design for easier maintenance
- Wear-resistant pump section
- Shock-resistant strainer stand
- Energy saving (Automatic Type)
- Prevent dry-running (Automatic Type)
Application
- General water intake or draining
- Dewatering in the construction site
- Draining water from basement/cellar/pits
- Draining or rainwater and puddles
- Draining of the treated water in water treatment plants
- Water intake for gardening or irrigation
Technical Data
Motor:
- 2 Pole, 50Hz, 2850rpm
- Insulation Class: E
- 1 Phase
- Protection Type IP68
Pump:
Impeller: Semi-vortex
Material:
- Impeller: Urethane Rubber (KA-2.4)
- Impeller: Hytrel (KA-2.75)
- Casing: Cast Iron / FCD700
- Strainer: PVC
- Shaft : SUS403 (KA-2.4)
- Shaft : SUS410 (KA-2.75)
- pH 6 up to 8
- Max. liquid temp: 40°C (104°F)
* Three-phase motor available by customized order.
Performance Curve
