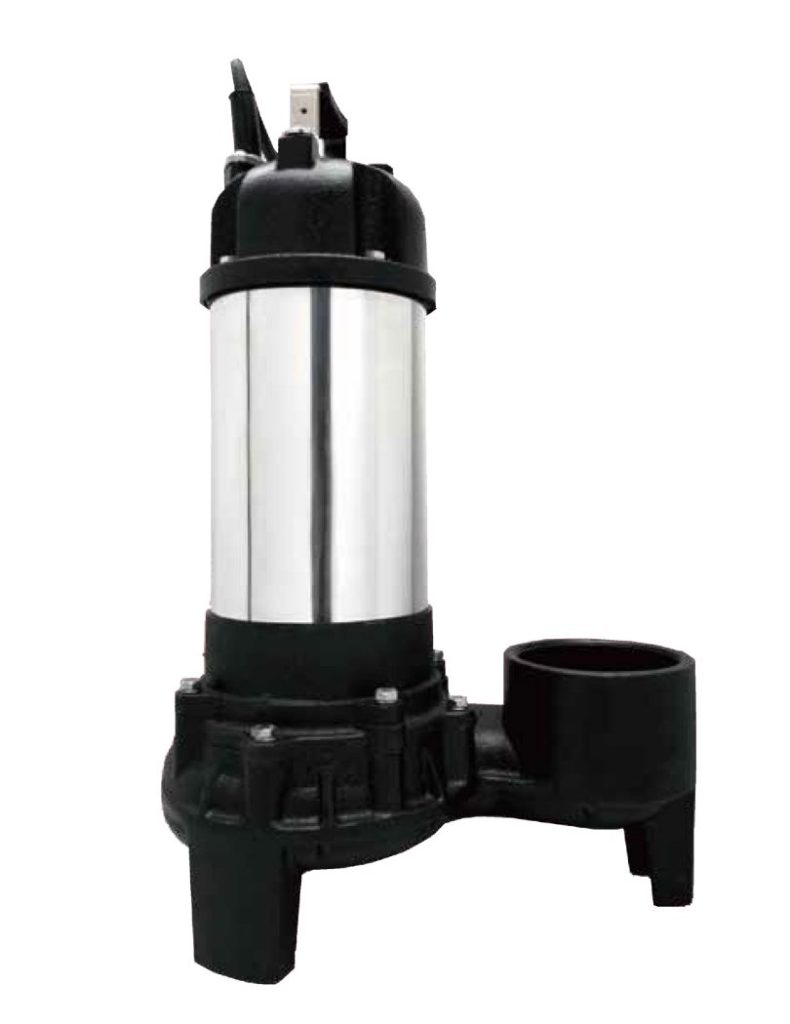

HF Series
HF Series pumps are submersible sewage pumps designed for both residential and industrial use. These pumps are equipped with a robust motor and durable cast iron construction, ensuring reliable performance in demanding applications. The advanced high-efficiency channel design minimizes blockages, while the double mechanical seal and power cable insulation treatment ensure safe and leak-free operation. Ideal for submersible installations, they are perfect for managing sewage, aquaculture water circulation, and garden waterfalls.
Features
- Durable cast iron motor housing with double mechanical seal (SiC/SiC, NBR) for superior protection and reliability.
- High-efficiency channel design with a four-inch outlet to prevent blockages and ensure smooth operation.
- Power cable export insulation treatment to eliminate water leakage and enhance safety.
- Double bearing construction ensures steady shaft operation for extended pump life.
Application
- Industrial sewage and drainage.
- Aquaculture water circulation.
- Decorative water features like garden waterfalls.
Technical Data
- Flow: 850 – 1200 l/min
- Head: 8 – 12 m
- Liquid temperature: Up to 40°C (104°F)
- pH Range: 6 to 8
- Max depth: 8 m
- Material: Cast iron (Impeller, casing) and SUS410 (Shaft)
Performance Curve
