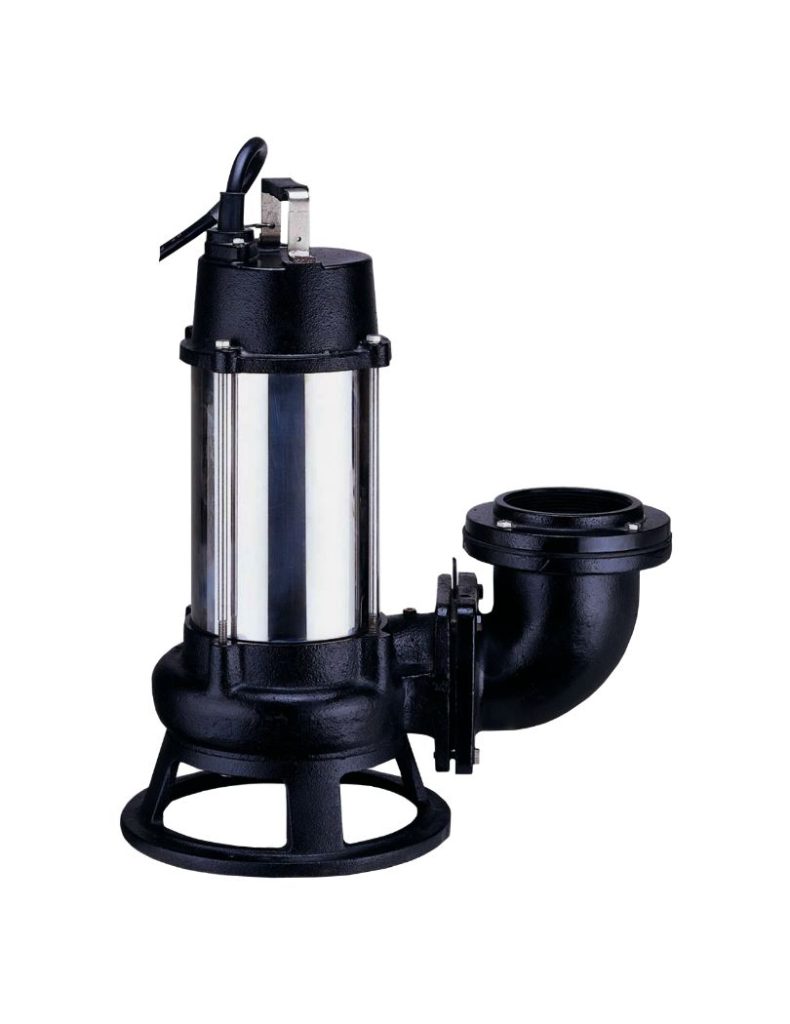

DSK Series

The DSK Series pumps are portable submersible wastewater pumps designed for both domestic and industrial applications. These pumps combine a motor and a pump in an enclosed unit, making them ideal for submersible installations in pits. The robust construction of the DSK Series makes them highly reliable for handling wastewater. When installed with auto-coupling systems using double rails, these pumps enable effortless maintenance, repair, and replacement, ensuring continuous operation and convenience for users.

Motor

2 Pole, 50Hz
Speed: 2900/3450 rpm
Insulation Class: F
1 Phase & 3 Phase
Protection Type: IP68

Application

Industrial sewage discharge.
Environmental protection system.
Removable pedestal.

Features

Double mechanical seal can extend lifetime.
Rubber bearing sleeve prevents water leak in.
The cutter is made of tungsten steel.

Pump

Impeller: Enclosed type
Material:
- Impeller: FC200 + Tungsten cutter
- Casing: FC200
- Suction Cover: FC200
- Shaft: SUS410
pH: 6 up to 8
Max. liquid temp: 40°C (104°F)
Max. depth: 8m
