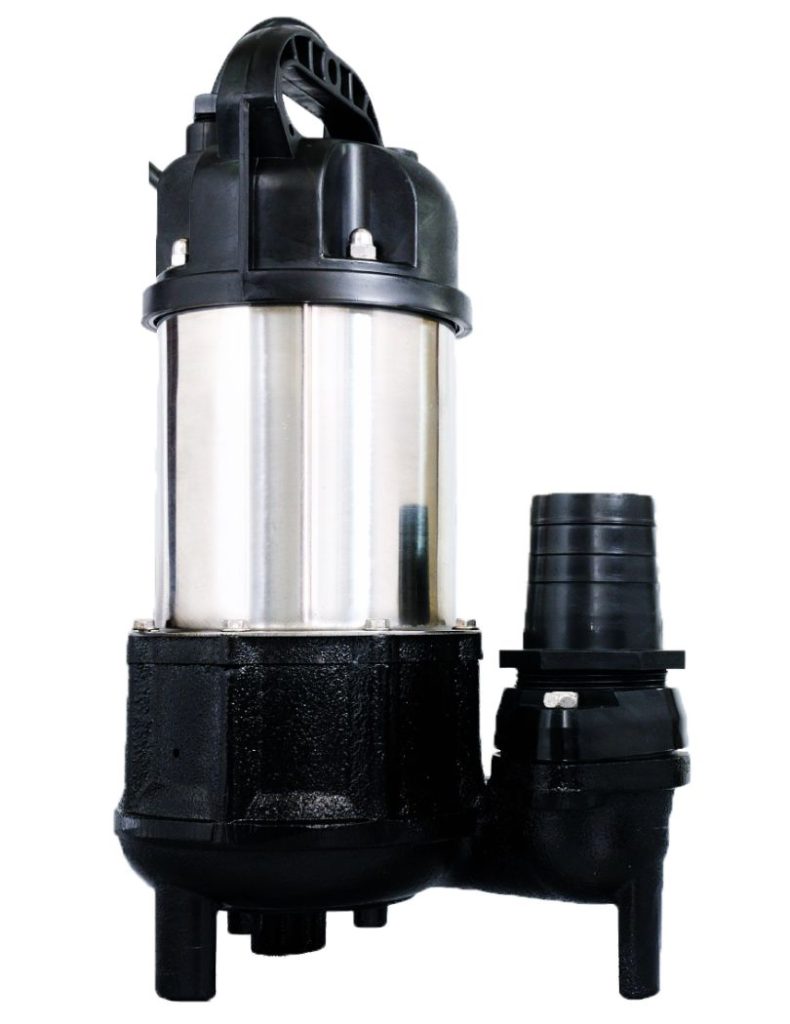

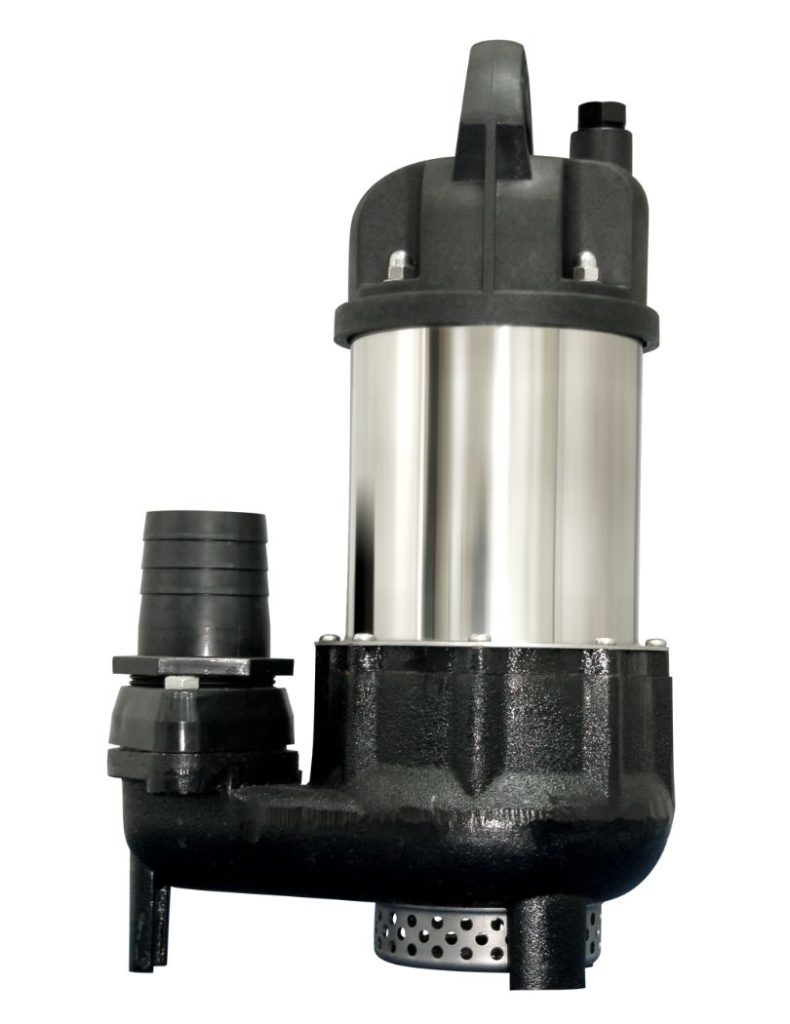

BAV Series
The BAV Series is the best choice for general sewage and drainage application. Oil chamber design can give the mechanical seal long service life. It also fitted with non-clogging vortex impeller. It also feature a removable strainer for easy maintenance.
The BAV Series has high efficacy slippage casing design with low resistance and low electricity consumption.
Features
The BAV Series is the best choice for general sewage and drainage applications. Oil chamber design can give the mechanical seal a long service life. It is also fitted with a non-clogging vortex impeller. It also features a removable strainer for easy maintenance.
The BAV Series has a high-efficacy slippage casing design with low resistance and low electricity consumption.
Application
Industrial Sewage and Drainage
Technical Data
- Liquid temperature 0°C to 40°C
- Ambient temperature max 40°C, pH 6 to 8
- Motor range: 1/5 Hp to 3/4 Hp / 0.15 kW to 0.55 kW
- Rated speed: 2900 rpm / 3450 rpm
- Capacity up to 340 l/m
- Protection class: IP 68
- Max depth: 8 m
Performance Curve
