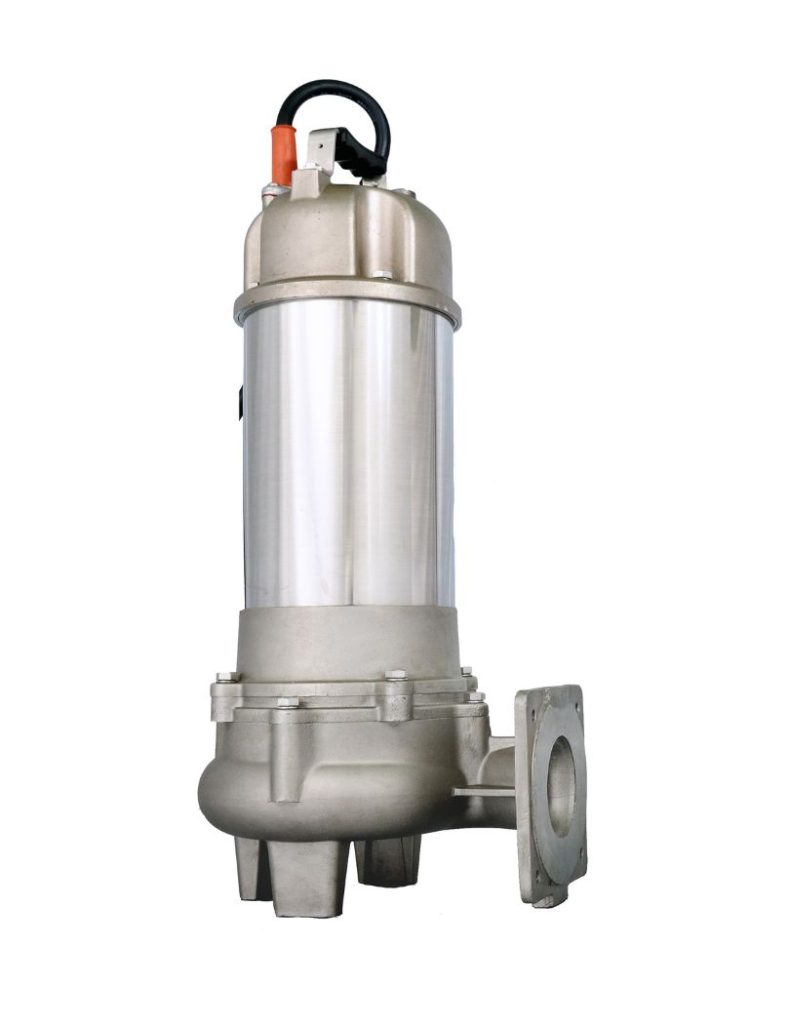

SB Series
The SB Series Agitator pumps are used for heavy sludges, ash removal, coal handling and similar applications. They serve the most demanding services. The pumps are constructed of cast iron upper cover and stainless steel double frame cases. Inlet Plate & Pump Casing are made of wear-resistant cast iron to withstand very abrasive liquids.
FEATURES
• Completely water-tight cable entry sealed with epoxy resin.
• Cast iron upper cover and stainless steel double frame cases with circumferential flow system achieve superior cooling effect.
• Stainless steel strainer.
• High head/low volume and low head/high volume are optional by changing the impeller and discharge.
• Oil free hermetically sealed, with built-in thermal overload protector.
• Inlet Plate & Pump Casing are made of wear-resistant cast iron to withstand very abrasive liquids.
• Stainless steel for outer case and motor frame (in Stainless steel for output 5.5 kW, in cast iron for output 11 kW) from a circumferential flow system with superior cooling effect
APPLICATIONS
• For sump effluent, waste water & sewage.
• Groundwater lowering.
• General construction & Civil engineering application.
• Tunnel & Subway construction.
• Municipal pump pits.
• Rain and spring water drainage.
TECHNICAL DATA
• 3 phase, 2 pole, 50Hz 2850rpm and 60Hz 3450rpm
• Insulation Class F
• Protection Type Ip68
• Liquid temperature : 40°C(104°F)
• Depth submerged is down to 10m
